PCS-110L Line Array Speaker

System Type	Single 10´´ Line Array Speaker
Maximum SPL	133 dB
Coverage Pattern (hxv)	120°x10°
Dimensions (h/w/d)	319x500x515 mm
Net weight	21,5 kg

PCS-110L Single 10 Inch Compact Line Array Speaker

Compact professional passive line array speaker for touring productions, live events and permanent installations.

The 4-acoustic PCS-110L Single 10 Inch Compact Line Array Speaker is designed for professional sound reinforcement where compact dimensions, high output and excellent speech intelligibility are equally important. Developed for touring companies, rental providers, live venues and permanent installations, the PCS-110L delivers consistent performance in medium-sized concerts, corporate events, theatres, churches and outdoor productions.

Unlike larger touring line array systems, the PCS-110L focuses on maximum flexibility with minimal weight. Its compact enclosure makes transport, rigging and installation significantly easier while maintaining the acoustic performance expected from professional line array technology. This makes it an ideal solution for mobile production companies and venues with limited installation space.

The PCS-110L uses a high-performance 10-inch neodymium woofer combined with a precision high-frequency compression driver and optimized waveguide technology. The result is a highly controlled sound field with outstanding vocal clarity, detailed midrange reproduction and extended high-frequency response across the audience area.

Engineered for scalable line array systems, multiple PCS-110L cabinets can be combined into vertical arrays using the original 4-acoustic flying hardware. The integrated rigging system allows precise angle adjustment for optimal audience coverage and fast setup during touring productions.

Whether used as a compact festival PA, a theatre line array, a church sound system or a corporate event solution, the PCS-110L provides reliable performance, high speech intelligibility and powerful live sound reproduction.

Designed for Professional Applications

The PCS-110L is suitable for a wide range of professional sound reinforcement projects.

Typical Applications

Touring sound systems.
Rental companies.
Festivals and open-air events.
Churches and houses of worship.
Corporate events and conferences.
Theatres and performing arts venues.
Clubs and live music venues.
Permanent installations.

High-Output Neodymium Components

The PCS-110L uses:

Single 10-inch Neodymium woofer.
Dual high-frequency compression drivers.
Precision waveguide technology.
Passive two-way crossover design.

This combination produces high efficiency, low distortion and exceptional vocal clarity while maintaining consistent tonal balance across the audience area.

Built for Outdoor Performance

The enclosure is manufactured from premium Baltic Birch multiplex wood and protected with a durable weather-resistant Polyurea coating. This finish resists moisture, impacts and abrasion, making the PCS-110L suitable for touring trucks, outdoor festivals and permanent installations in challenging environments.

Technical Specifications

GS1 (EAN) CODE	4260318510592
System Type	1x10“/2x1,75“ 2-Wege Line Array Speaker
Power Rating	450 W AES 900 W program 1800 W peak
Frequency Range (+/- 3 dB)	75 Hz - 20 kHz
Coverage Pattern (hxv)	120°x10°
Sensitivity	103 dB 1W/1m
Maximum SPL	133 dB
Woofer	1 x STG-10L 350W AES, 3“ voice coil, neodymium
Driver	2xSTG-45NB 50W AES, 1,75“ voice coil, neodymium
Nominal Impedance	16 Ohm
Input Connectors	2xNeutrik NL4 Sockets Parallel 1+/1-
Housing	Birch plywood
Coating	Waterproof polyurea coating
Dimensions (h/w/d)	319x500x515 mm
Net weight	21,5 kg

Flexible Rigging System

4-Acoustic's integrated flyware enables fast and safe deployment.

Advantages include:

Flying arrays up to 12 modules.
1,5° angle resolution.
Integrated mechanical brake.
Lightweight aluminum flyware.
Ground-stack compatibility with PCS subwoofers.
Touring flight frame and transport case accessories.

This reduces setup time while ensuring precise array geometry.

Drawing

Photos

Optimized for 4-Acoustic DSP Amplifiers

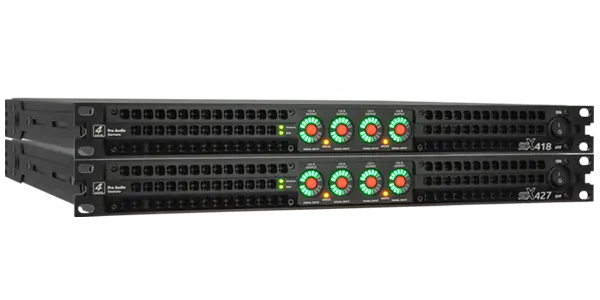

For maximum performance, the PCS-110L is designed to work with 4-Acoustic DSM FIR DSP processors and SX or SDX Class-D amplifiers. Factory-developed FIR presets optimize phase response, crossover behavior and system protection, providing consistent results in touring and installation projects.

Accessories

Light Flight Frame

Flight frame

Cases and Trolleys

Why Choose the PCS-110L?

The PCS-110L combines the benefits of a compact loudspeaker with the performance of a professional line array system. Its lightweight construction reduces transport costs and installation time while delivering the output and precision required for professional productions.

Designed for Touring, Rental and Live Events

Professional audio companies require loudspeakers that perform reliably under demanding conditions. The PCS-210L has been engineered specifically for rental and touring environments where durability, flexibility and sound quality are equally important.

Applications include:

Concert touring systems
Festivals and outdoor events
Live music venues
Houses of worship
Sports arenas
Corporate productions
Theater sound reinforcement
Club installations
Rental inventories

Its compact dimensions allow large arrays without excessive weight while maintaining excellent horizontal coverage of 120° and a focused 10° vertical dispersion for long-throw applications.

Frequently Asked Questions

The PCS-110L is a compact passive professional line array speaker for touring, rental companies, festivals, churches, theatres and fixed installations.

Yes. The weather-resistant Polyurea coating and touring-grade cabinet construction make it suitable for professional outdoor productions when used according to installation guidelines.

Yes. The PCS-110L is designed to be flown as a scalable vertical line array using the original 4-acoustic rigging system.

Recommended models include:
